Wiring the MQ-XX Sensor for Ozone, LPG, C3H8, CO, H, C2H6O, C6H6 Gas Detection on STM32F

MQ-XX Sensor series is a sensitive gas detection sensor which provide a lower conductivity in a clean air. When the sensor detect a gas exist in area the sensor conductivity will increase. These sensor has a high sensitivity to Ozone, LPG, C3H8, CO, H, C2H6O and C6H6 gas detection. MQ sensor series are useful in domestic, industrial, portable gas detection and automotive. Please refer to diagram and datasheets below for further information and characteristics on each model of MQ sensor.

Required Components

NUCLEO, Discovery, ARM CORTEX STM32F, STM32F Dev Board
MQ Gas Sensor / Module
Jumper Wires / DuPont Wires
Solder Less Bread Board

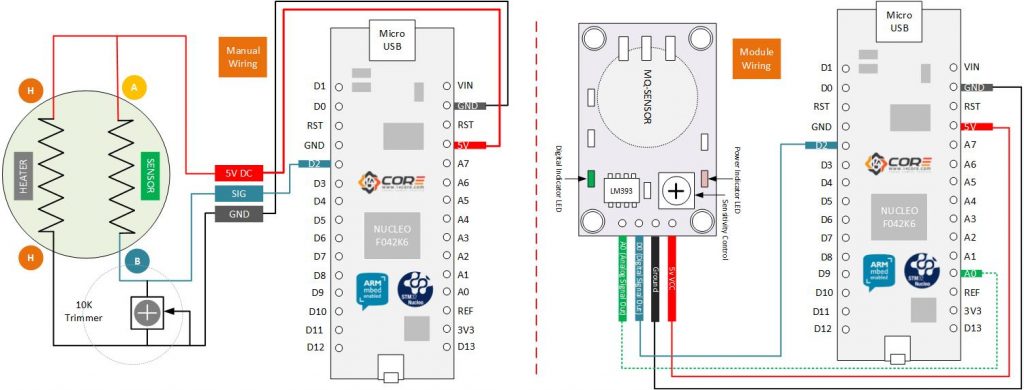

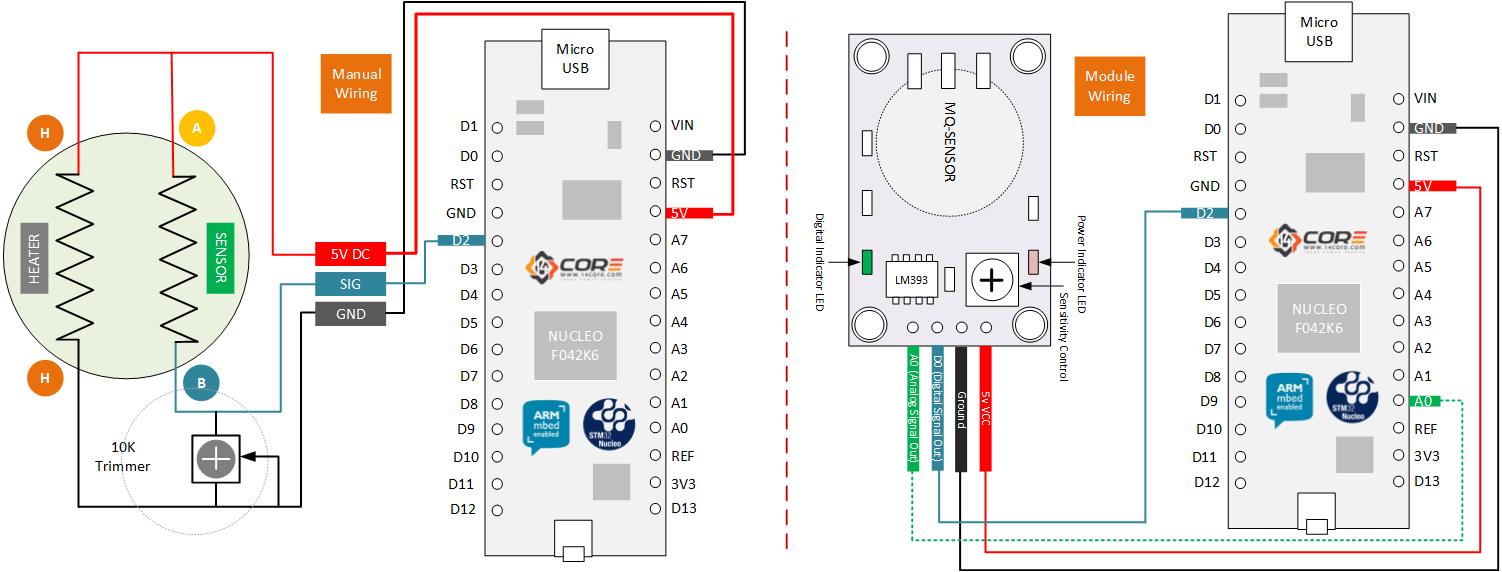

Wiring Guide

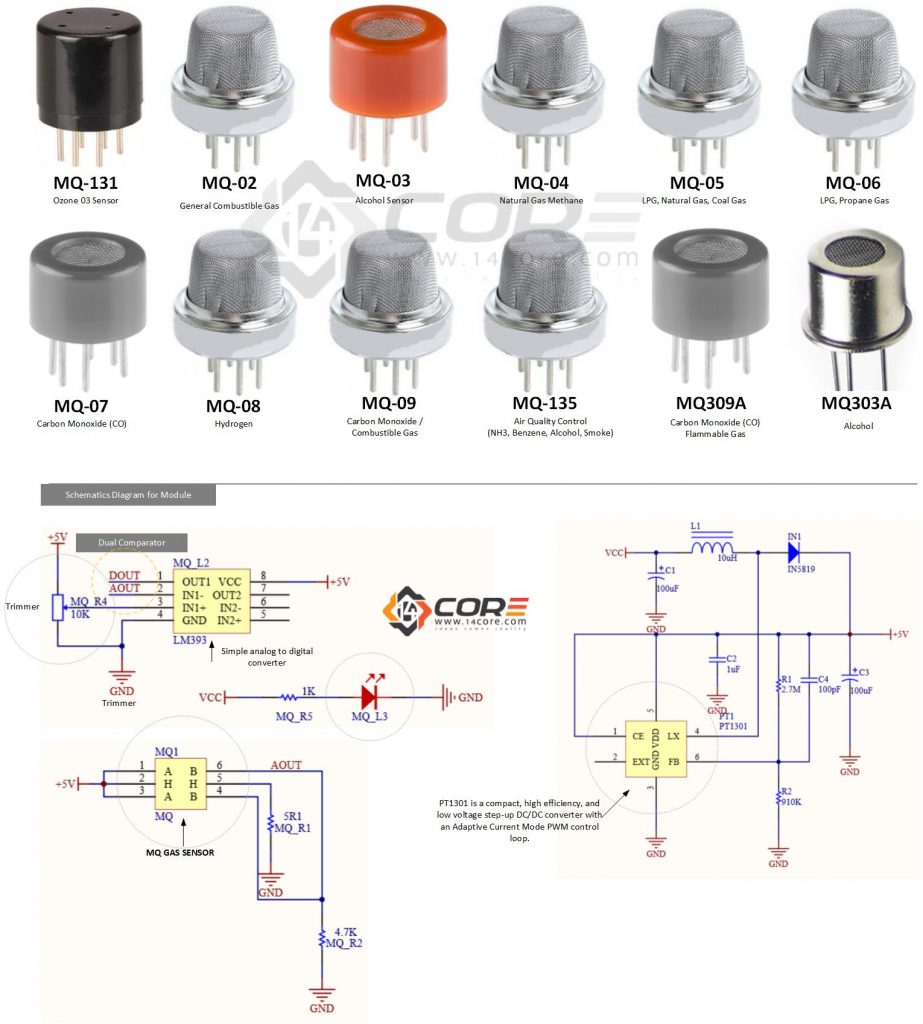

Schematics Diagram & MQ Sensor Functions

Source Code

#include "stm32f10x.h"
#include "systick.h"
#include <stdio.h>
#include "usart.h"
#define ADC1_DR_Address    ((u32)0x4001244C)

void USART_Configuration(void);
void ADC_Configuration(void);

float AD_value;
vu16 ADC_ConvertedValue;

void user_gpio_init(void)
{
	GPIO_InitTypeDef GPIO_InitStructure;
	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA,ENABLE);

	GPIO_InitStructure.GPIO_Pin=GPIO_Pin_4;
    GPIO_InitStructure.GPIO_Mode=GPIO_Mode_IPU;

	GPIO_Init(GPIOA,&GPIO_InitStructure);
}

int main(void)
{
	Delay_Init();
	usart_Configuration();
	ADC_Configuration();
	user_gpio_init();
	printf("\r\n************* 14CORE | MQXX SENSOR STM32 TEST CODE *************\r\n");
	printf("\r\n************* | -------- www.14core.com --------|  *************\r\n");
  	printf("\r\n****************************************************************\r\n");
  	/* Infinite loop */
  	while (1)
  	{
		if(GPIO_ReadInputDataBit(GPIOA,GPIO_Pin_4))
			printf("No Gas has been detected!\r\n");
		else
			printf("Gas is detected\r\n");
    	/* Printf message with AD value to serial port every 1 second */
	  	AD_value = ADC_ConvertedValue;
	  	AD_value = (AD_value/4096)*3.3;
    	printf("@ AD value = %4.2fV \r\n", AD_value);
	  	Delay(100);   /* delay 1000ms */
	}
}

void ADC_Configuration(void)
{
  ADC_InitTypeDef ADC_InitStructure;
  DMA_InitTypeDef DMA_InitStructure;
  GPIO_InitTypeDef GPIO_InitStructure;

  RCC_AHBPeriphClockCmd(RCC_AHBPeriph_DMA1, ENABLE);
  RCC_APB2PeriphClockCmd(RCC_APB2Periph_ADC1 | RCC_APB2Periph_GPIOA | RCC_APB2Periph_AFIO, ENABLE);

  /* Configure PA.06 (ADC Channel6), PA.07 (ADC Channel7) as analog input -------------------------*/
  GPIO_InitStructure.GPIO_Pin = GPIO_Pin_6 | GPIO_Pin_7;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AIN;
  GPIO_Init(GPIOA, &GPIO_InitStructure);

  /* DMA channel1 configuration ----------------------------------------------*/
  DMA_DeInit(DMA1_Channel1);
  DMA_InitStructure.DMA_PeripheralBaseAddr = ADC1_DR_Address;
  DMA_InitStructure.DMA_MemoryBaseAddr = (u32)&ADC_ConvertedValue;
  DMA_InitStructure.DMA_DIR = DMA_DIR_PeripheralSRC;
  DMA_InitStructure.DMA_BufferSize = 1;
  DMA_InitStructure.DMA_PeripheralInc = DMA_PeripheralInc_Disable;
  DMA_InitStructure.DMA_MemoryInc = DMA_MemoryInc_Disable;
  DMA_InitStructure.DMA_PeripheralDataSize = DMA_PeripheralDataSize_HalfWord;
  DMA_InitStructure.DMA_MemoryDataSize = DMA_MemoryDataSize_HalfWord;
  DMA_InitStructure.DMA_Mode = DMA_Mode_Circular;
  DMA_InitStructure.DMA_Priority = DMA_Priority_High;
  DMA_InitStructure.DMA_M2M = DMA_M2M_Disable;
  DMA_Init(DMA1_Channel1, &DMA_InitStructure);

  /* Enable DMA1 channel1 */
  DMA_Cmd(DMA1_Channel1, ENABLE);

  /* ADC1 configuration ------------------------------------------------------*/
  ADC_InitStructure.ADC_Mode = ADC_Mode_Independent;
  ADC_InitStructure.ADC_ScanConvMode = ENABLE;
  ADC_InitStructure.ADC_ContinuousConvMode = ENABLE;
  ADC_InitStructure.ADC_ExternalTrigConv = ADC_ExternalTrigConv_None;
  ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right;
  ADC_InitStructure.ADC_NbrOfChannel = 1;
  ADC_Init(ADC1, &ADC_InitStructure);

  /* ADC1 regular channel6 configuration */
  ADC_RegularChannelConfig(ADC1, ADC_Channel_6, 1, ADC_SampleTime_239Cycles5);

  /* Enable ADC1 DMA */
  ADC_DMACmd(ADC1, ENABLE);

  /* Enable ADC1 */
  ADC_Cmd(ADC1, ENABLE);

  /* Enable ADC1 reset calibaration register */
  ADC_ResetCalibration(ADC1);
  /* Check the end of ADC1 reset calibration register */
  while(ADC_GetResetCalibrationStatus(ADC1));

  /* Start ADC1 calibaration */
  ADC_StartCalibration(ADC1);
  /* Check the end of ADC1 calibration */
  while(ADC_GetCalibrationStatus(ADC1));

  /* Start ADC1 Software Conversion */
  ADC_SoftwareStartConvCmd(ADC1, ENABLE);
}

#ifdef  USE_FULL_ASSERT

/**
  * @brief  Reports the name of the source file and the source line number
  * where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t* file, uint32_t line)
{
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */

  /* Infinite loop */
  while (1)
  {
  }
}
#endif

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

#include "stm32f10x.h"

#include "systick.h"

#include <stdio.h>

#include "usart.h"

#define ADC1_DR_Address ((u32)0x4001244C)

void USART_Configuration(void);

void ADC_Configuration(void);

float AD_value;

vu16 ADC_ConvertedValue;

void user_gpio_init(void)

{

GPIO_InitTypeDef GPIO_InitStructure;

RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA,ENABLE);

GPIO_InitStructure.GPIO_Pin=GPIO_Pin_4;

GPIO_InitStructure.GPIO_Mode=GPIO_Mode_IPU;

GPIO_Init(GPIOA,&GPIO_InitStructure);

}

int main(void)

{

Delay_Init();

usart_Configuration();

ADC_Configuration();

user_gpio_init();

printf("\r\n************* 14CORE | MQXX SENSOR STM32 TEST CODE *************\r\n");

printf("\r\n************* | -------- www.14core.com --------| *************\r\n");

printf("\r\n****************************************************************\r\n");

/* Infinite loop */

while (1)

{

if(GPIO_ReadInputDataBit(GPIOA,GPIO_Pin_4))

printf("No Gas has been detected!\r\n");

else

printf("Gas is detected\r\n");

/* Printf message with AD value to serial port every 1 second */

AD_value = ADC_ConvertedValue;

AD_value = (AD_value/4096)*3.3;

printf("@ AD value = %4.2fV \r\n", AD_value);

Delay(100); /* delay 1000ms */

}

void ADC_Configuration(void)

{

ADC_InitTypeDef ADC_InitStructure;

DMA_InitTypeDef DMA_InitStructure;

GPIO_InitTypeDef GPIO_InitStructure;

RCC_AHBPeriphClockCmd(RCC_AHBPeriph_DMA1, ENABLE);

RCC_APB2PeriphClockCmd(RCC_APB2Periph_ADC1 | RCC_APB2Periph_GPIOA | RCC_APB2Periph_AFIO, ENABLE);

/* Configure PA.06 (ADC Channel6), PA.07 (ADC Channel7) as analog input -------------------------*/

GPIO_InitStructure.GPIO_Pin = GPIO_Pin_6 | GPIO_Pin_7;

GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;

GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AIN;

GPIO_Init(GPIOA, &GPIO_InitStructure);

/* DMA channel1 configuration ----------------------------------------------*/

DMA_DeInit(DMA1_Channel1);

DMA_InitStructure.DMA_PeripheralBaseAddr = ADC1_DR_Address;

DMA_InitStructure.DMA_MemoryBaseAddr = (u32)&ADC_ConvertedValue;

DMA_InitStructure.DMA_DIR = DMA_DIR_PeripheralSRC;

DMA_InitStructure.DMA_BufferSize = 1;

DMA_InitStructure.DMA_PeripheralInc = DMA_PeripheralInc_Disable;

DMA_InitStructure.DMA_MemoryInc = DMA_MemoryInc_Disable;

DMA_InitStructure.DMA_PeripheralDataSize = DMA_PeripheralDataSize_HalfWord;

DMA_InitStructure.DMA_MemoryDataSize = DMA_MemoryDataSize_HalfWord;

DMA_InitStructure.DMA_Mode = DMA_Mode_Circular;

DMA_InitStructure.DMA_Priority = DMA_Priority_High;

DMA_InitStructure.DMA_M2M = DMA_M2M_Disable;

DMA_Init(DMA1_Channel1, &DMA_InitStructure);

/* Enable DMA1 channel1 */

DMA_Cmd(DMA1_Channel1, ENABLE);

/* ADC1 configuration ------------------------------------------------------*/

ADC_InitStructure.ADC_Mode = ADC_Mode_Independent;

ADC_InitStructure.ADC_ScanConvMode = ENABLE;

ADC_InitStructure.ADC_ContinuousConvMode = ENABLE;

ADC_InitStructure.ADC_ExternalTrigConv = ADC_ExternalTrigConv_None;

ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right;

ADC_InitStructure.ADC_NbrOfChannel = 1;

ADC_Init(ADC1, &ADC_InitStructure);

/* ADC1 regular channel6 configuration */

ADC_RegularChannelConfig(ADC1, ADC_Channel_6, 1, ADC_SampleTime_239Cycles5);

/* Enable ADC1 DMA */

ADC_DMACmd(ADC1, ENABLE);

/* Enable ADC1 */

ADC_Cmd(ADC1, ENABLE);

/* Enable ADC1 reset calibaration register */

ADC_ResetCalibration(ADC1);

/* Check the end of ADC1 reset calibration register */

while(ADC_GetResetCalibrationStatus(ADC1));

/* Start ADC1 calibaration */

ADC_StartCalibration(ADC1);

/* Check the end of ADC1 calibration */

while(ADC_GetCalibrationStatus(ADC1));

/* Start ADC1 Software Conversion */

ADC_SoftwareStartConvCmd(ADC1, ENABLE);

}

#ifdef USE_FULL_ASSERT

/**

* @brief Reports the name of the source file and the source line number

* where the assert_param error has occurred.

* @param file: pointer to the source file name

* @param line: assert_param error line source number

* @retval None

void assert_failed(uint8_t* file, uint32_t line)

{

/* User can add his own implementation to report the file name and line number,

ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */

/* Infinite loop */

while (1)

{

}

#endif
