In this illustration we will going to wire the NEC IR 38K Infrared Remote Control, The NEC IR 38K is an universal infrared control, encoding format mainly for cars, home appliances, lighting design equipment, digital photo frame, and other device that used Infrared remote control, this IR is based on non-line remote control and easy to use for any microcontroller projects.
The infrared remote control module has a distance of more than 8 meters, and it has a lunch tube infrared wavelength of 940Nm crystal frequency of 455KHz, carrier frequency 38KHz, Power CR2025/1600 mAH.
Note: IR remote control has a set of components one is the transmitter and the receiver and it has to decode the code and will display the HEX code.
Download the code library below and see all the example code driving the infrared module board.
Required Components
- Arduino Board

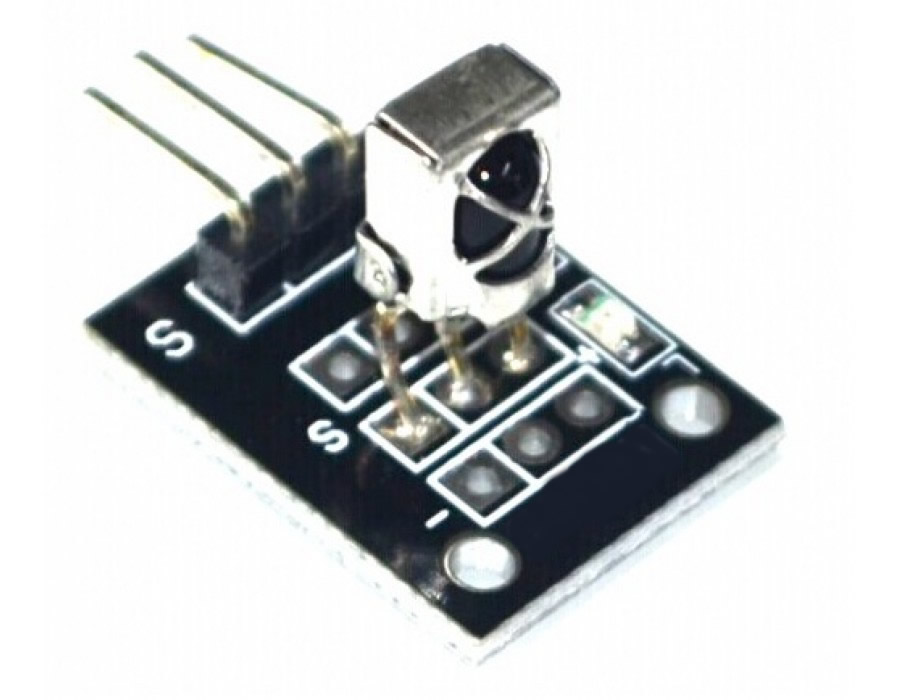

- IR Remote Control Receiver Module
- Jumper / DuPont Wire
- Solder less bread board
Wiring Guide
Arduino Sketch
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 |
/* $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ 14CORE TEST CODE FOR INFRARED RECEIVER MODULE 8888888888888888888888888888888888888888888888888888888888 */ #include <IRremote.h> //Define the IRremote.h library which can be download below. int MyRecvPin = 12; //define at the Pin 11 Receive on arduino IRrecv irrecv(MyRecvPin); decode_results results; void setup() { Serial.begin(9600); irrecv.enableIRIn(); // To Start Initializing the receiver } void loop() { if (irrecv.decode(&results)) { Serial.println(results.value, HEX); irrecv.resume(); // To Receive the next value } } |
Download the Arduino Code Library here | Zip
