Wiring HC-21 (M02) 2.4GHz Wi-Fi Serial Universal Asynchronous RX/TX on Microcontroller

This is the HC-21 an embedded Wi-Fi UART module built IEEE802.11 wireless network protocol stacks and TCP/IP protocol to achieve conversation between serial data to wireless network communication. The HC21 can be connected via wireless to wireless without any support of microcontroller works as standalone, or master/client mode. For example if you want to extend your RS485 communication to wireless 2.4GHz to extend the monitoring capabilities.

HC-21 module also support STA access as Infra network or Ad-hoc, soft AP, for handheld terminal access function and support TCP/UDP/ARP/ICMP/HTTP/IGMP/PPPOE/DHCP / DNS to provide smart terminal devices. HC 21 runs on 3.3v at 560mW Typical, support baud rate range to 1200 ~ 460800bps, up to 4 station can be setup, adapt OPEN/WEP/WPA-PSK/WPA2-PSK authentication, provides server software, application software, mobile Application design customization, support open source industrial protocols like (MODBUS) etc. can be configured using AT+ CMD instruction set on multiple parameter or configure via web interface. This device can be implemented in Industrial / Automotive electronics control, smart grids, IOT, Intelligent appliance and smart home. For more details please refer to the datasheet below.

Required Components

Arduino Microcontroller, Teensy (Teensy Duino), ATMEGA328 16/12, ATMEGA32u4 16/8/ MHz, ESP8266, ATMEGA250 16 MHz, ATSAM3x8E, ATSAM21D, ATTINY85 16/8 MHz (Note: The Diagram below is using NANO. If you’re using other MCUs please refer to the respective pin-outs diagram)
HC-21 EMBED 2.4GHz Serial UART Module
FTDI USB Serial Interface (Optional)
Jumper Wire / DuPont Wire
Bread Board / Solder Less Bread Board

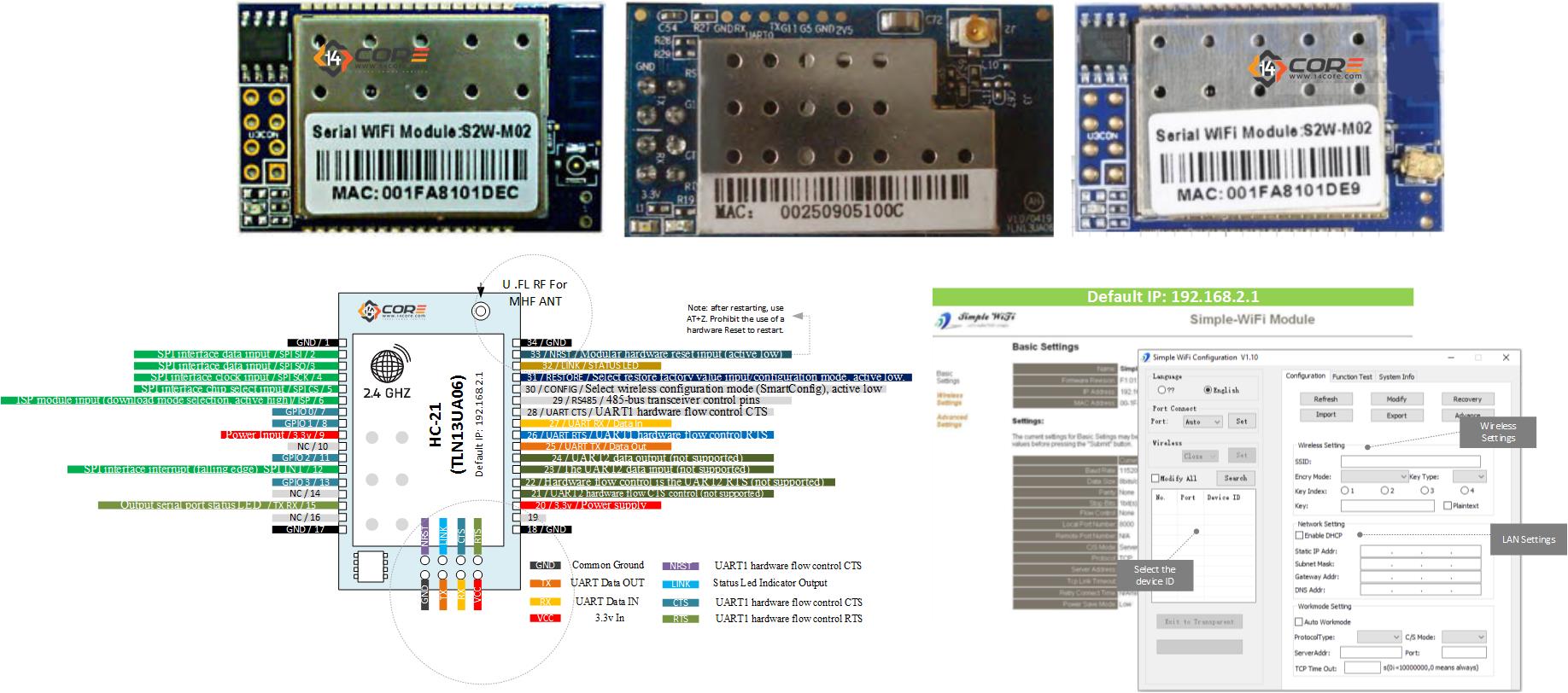

Pin-Out Diagram

Wiring Guide

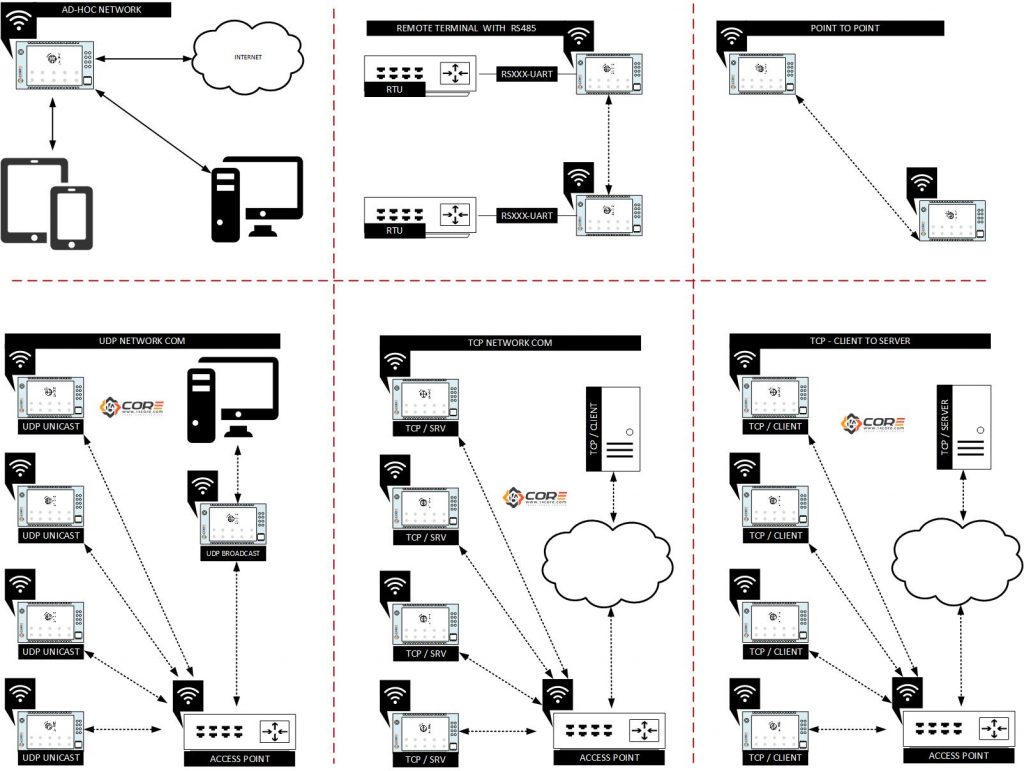

Network Implementation Diagram

Sketch Code

void setup() {
  Serial.begin(115200);
  Serial.print("14CORE | HC-21 Wi-Fi Embed UART Serial Communication Module Test Code");
  Serial.print("---------------------------------------------------------------------");
  Serial.print("Sending data to the receiver via wifi...."); //Open your serial monitor at web 192.168.2.1
  for (int i=1; i<=100; ++i) {
    Serial.write(27);
    Serial.print("[2J"); // Send erase-screen command
    Serial.print(i); // Send i in decimal format to the reciver
    delay(5000);
  }
}
void loop() {}

void setup() {

Serial.begin(115200);

Serial.print("14CORE | HC-21 Wi-Fi Embed UART Serial Communication Module Test Code");

Serial.print("---------------------------------------------------------------------");

Serial.print("Sending data to the receiver via wifi...."); //Open your serial monitor at web 192.168.2.1

for (int i=1; i<=100; ++i) {

Serial.write(27);

Serial.print("[2J"); // Send erase-screen command

Serial.print(i); // Send i in decimal format to the reciver

delay(5000);

}

void loop() {}

Download

Download HC-21 Documentation | Zip
Download HC-21 Documentation Datasheet | Zip
Download HC-21 Easy Simple WiFi Tool | Zip
