Wiring the 3014/3020/2835/5050/ Analog LED Strip with Bluetooth, Android & Microcontroller

This is another illustration how to wire the Analog Led Strip using PWM on Microcontroller together with Bluetooth module and your Android smart phone. As your can see the diagram below we are using MOSFET to drive higher voltage pointed to RGB LED Strip. MOSFET metal–oxide–semiconductor field-effect transistor (MOSFET, MOS-FET, or MOS FET) is a type of field-effect transistor (FET). It has an insulated gate, whose voltage determines the conductivity of the device. This ability to change conductivity with the amount of applied voltage can be used for amplifying or switching electronic signals. For customizing the settings of your Bluetooth HC06 using AT Command please refer to this link.

Required Component

Arduino Microcontroller, Teensy, ATMEGA328P on (USB to TTL), ATMEGA32U4
Bluetooth HC06 Module
MOSFET (N-Channel)
3014/3020/2835/5050/ Analog LED Strip
12v Power Adapter
5v Regulator(Optional)
Jumper Wires / DuPont Wires
Solder Less Bread Board

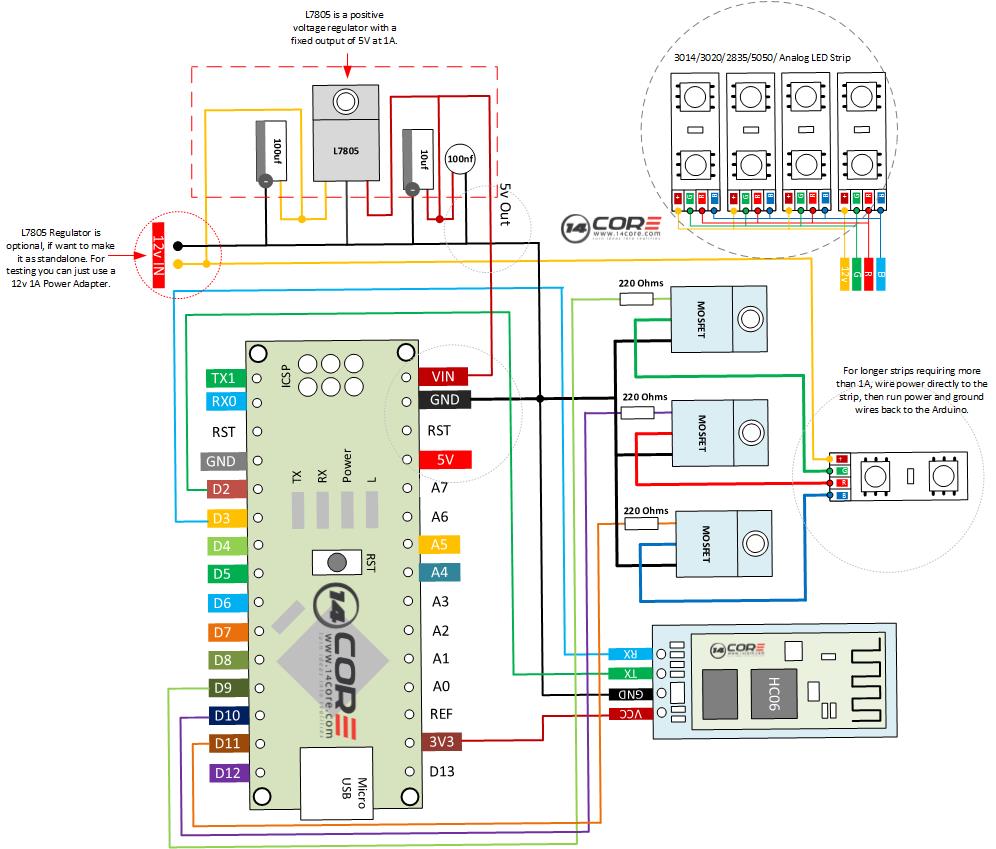

Wiring Guide

Android App.

https://play.google.com/store/apps/details?id=com.a14core.rgbselector

Source Code

#include <SoftwareSerial.h>

/* 14CORE | Bluetooth RGB Led Strip Commander
www.14core.com / Download the Android to google play | LED Commander |
Wiring with Arduino UNO

 *  UNO(PIN-10) - RED PIN
 *  UNO(PIN-9) - GREEN PIN
 *  UNO(PIN-11) - BLUE PIN
 *  UNO SERIAL RX(PIN 2) - HC06 TX PIN
 *  UNO SERIAL TX(PIN 3) - HC06 RX PIN
 *  UNO 3.3v - HC06 VCC
 *  UNO GND - HC06 GROUND
 *
Wiring with MEGA

 *  MEGA(PIN-10) - RED PIN
 *  MEGA(PIN-9) - GREEN PIN
 *  MEGA(PIN-11) - BLUE PIN
 *  MEGASERIAL RX(PIN 2) - HC06 TX PIN
 *  MEGASERIAL TX(PIN 3) - HC06 RX PIN
 *  MEGA 3.3v - HC06 VCC
 *  MEGA GND - HC06 GROUND
 *
Wiring with Teensy (Refer to pin configuration)
*/

#define pRED 10
#define pGREEN 9
#define pBLUE 11

SoftwareSerial mySerial(2, 3);

char state;
int counter = 0;
int pulse = 0;
int timeRand (100);
int speedPatroll(50); //SET SPEED FOR 2 state FLASHING
int speedFading(10); //SET SPEED FOR FADING SEQUENCE
int FRED, FGREEN, FBLUE;
long RRAND, GRAND, BRAND, TRAND;

void setup() {
Serial.begin(9600);
pinMode(pRED, OUTPUT);
pinMode(pGREEN, OUTPUT);
pinMode(pBLUE, OUTPUT);
}
void loop(){

  if (Serial.available()>0){
  state = Serial.read();
  char start = char(state);
    if (start != 0){
    }
  Serial.println(start);
  }
  if (state == 'o'){off();}
  if (state == 'n'){on();}
  if (state == 'w'){cwhite();}
  if (state == 'r'){cRed();}
  if (state == 'e'){cOrange();}
  if (state == 'y'){cYellow();}
  if (state == 'g'){cGreen();}
  if (state == 'l'){cLime();}
  if (state == 'b'){cBlue();}
  if (state == 's'){cSkyBlue();}
  if (state == 'p'){cPurple();}
  if (state == 'k'){cPink();}
  if (state == 'f'){strobeWhite();}
  if (state == 'q'){setPatroll();}
  if (state == 't'){fading();}
  if (state == 'i'){setRandom();}
}

/* 14CORE | FX */
// --------------------

void off(){
analogWrite(pRED, 0);
analogWrite(pGREEN, 0);
analogWrite(pBLUE, 0);
}
void on(){
analogWrite(pRED, 255);
analogWrite(pGREEN, 255);
analogWrite(pBLUE, 255);
}

void cwhite(){
analogWrite(pRED, 255);
analogWrite(pGREEN, 255);
analogWrite(pBLUE, 255);
}

void cRed(){
analogWrite(pRED, 255);
analogWrite(pGREEN, 0);
analogWrite(pBLUE, 0);
}

void cGreen(){
analogWrite(pRED, 0);
analogWrite(pGREEN, 255);
analogWrite(pBLUE, 0);
}

void cBlue(){
analogWrite(pRED, 0);
analogWrite(pGREEN, 0);
analogWrite(pBLUE, 255);
}

void cSkyBlue(){
analogWrite(pRED, 250);
analogWrite(pGREEN, 200);
analogWrite(pBLUE, 0);
}

void cOrange(){
analogWrite(pRED, 255);
analogWrite(pGREEN, 153);
analogWrite(pBLUE, 0);
}

void cYellow(){
analogWrite(pRED, 255);
analogWrite(pGREEN, 255);
analogWrite(pBLUE, 0);
}

void cLime(){
analogWrite(pRED, 100);
analogWrite(pGREEN, 255);
analogWrite(pBLUE, 100);
}

void cPurple(){
analogWrite(pRED, 102);
analogWrite(pGREEN, 0);
analogWrite(pBLUE, 153);
}

void cPink(){
analogWrite(pRED, 102);
analogWrite(pGREEN, 100);
analogWrite(pBLUE, 153);
}

void strobeWhite(){
  if (counter < 3){
  analogWrite(pRED,250);
  analogWrite(pGREEN,250);
  analogWrite(pBLUE,250);
  delay(200);
  analogWrite(pRED,250);
  analogWrite(pGREEN,250);
  analogWrite(pBLUE,250);
  delay(100);
  counter++;
  }
}

void fading(){
for (FRED = 0; FRED < 255; FRED++) {
  analogWrite(pRED, FRED);
  delay(speedFading);
  }
for (FBLUE = 255; FBLUE > 0; FBLUE--){
  analogWrite(pBLUE, FBLUE);
  delay(speedFading);
  }
for (FGREEN = 0; FGREEN <255; FGREEN ++){
  analogWrite(pGREEN, FGREEN);
  delay(speedFading);
  }

for (FRED = 255; FRED > 0; FRED--) {
  analogWrite(pRED, FRED);
  delay(speedFading);
  }
for (FBLUE = 0; FBLUE < 255; FBLUE++){
  analogWrite(pBLUE, FBLUE);
  delay(speedFading);
  }
for (FGREEN = 255; FGREEN > 0; FGREEN--){
  analogWrite(pGREEN, FGREEN);
  delay(speedFading);
  }
}

void setRandom(){
RRAND = random(0, 255); //CHANGE VALUE FOR RANDOM RANGE NUMBERS
GRAND = random(0, 255); //CHANGE VALUE FOR RANDOM RANGE NUMBERS
BRAND = random(0, 255); //CHANGE VALUE FOR RANDOM RANGE NUMBERS
TRAND = random(200, 800); //CHANGE VALUE FOR DELAY RANGE NUMBERS
analogWrite(pRED, RRAND);
analogWrite(pGREEN, GRAND);
analogWrite(pBLUE, BRAND);
delay(TRAND);
analogWrite(pRED, 255);
analogWrite(pGREEN, GRAND);
analogWrite(pBLUE, BRAND);
delay(TRAND);
analogWrite(pRED, RRAND);
analogWrite(pGREEN, 255);
analogWrite(pBLUE, BRAND);
delay(TRAND);
analogWrite(pRED, RRAND);
analogWrite(pGREEN, GRAND);
analogWrite(pBLUE, 255);
delay(TRAND);
}

void setPatroll(){
analogWrite(pRED, 255);
analogWrite(pGREEN, 0);
analogWrite(pBLUE, 0);
delay(speedPatroll);
analogWrite(pRED, 0);
analogWrite(pGREEN, 0);
analogWrite(pBLUE, 255);
delay(speedPatroll);
analogWrite(pRED, 0);
analogWrite(pGREEN, 0);
analogWrite(pBLUE, 0);
delay(speedPatroll);
analogWrite(pRED, 255);
analogWrite(pGREEN, 0);
analogWrite(pBLUE, 0);
delay(speedPatroll);
analogWrite(pRED, 0);
analogWrite(pGREEN, 0);
analogWrite(pBLUE, 255);
}
