In this illustration we will going to wire a Digital Potentiometer using MCP4161. The MSC 7/8-Bit Single/Dual SPI Digital POT with
Non-Volatile Memory.

Required Components

1x MCP4161
1x 100K Ohms Resistor
1x 100nf Ceramic/Tantalum Capacitor

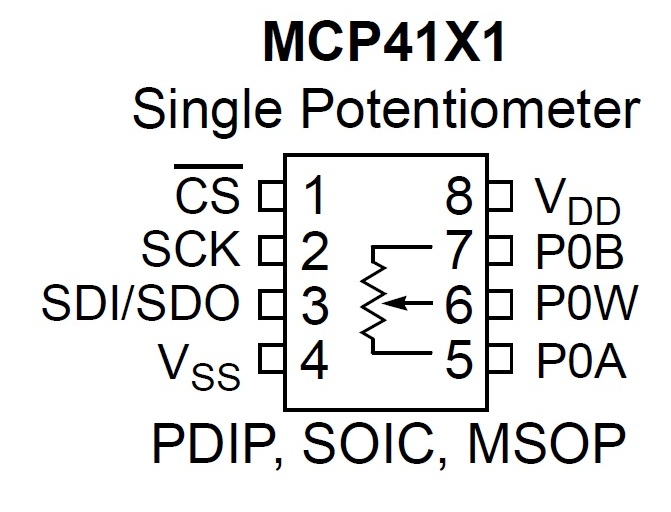

MCP4161 Pin-Out Diagram

MCP4161-Potensiometter-Pinout2

 Wiring Diagram for MCP4161 Digital Potentiometer

Connecting-A-digital-potensiometer-schematics

Download the MCP4161 Datasheet Here | Pdf

Wiring a Digital Potentiometer with MCP4161
