Water flow rotor/motor sensor wiring guide on Arduino

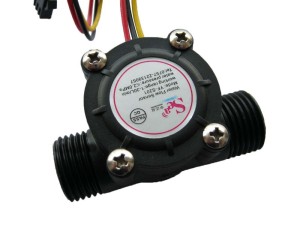

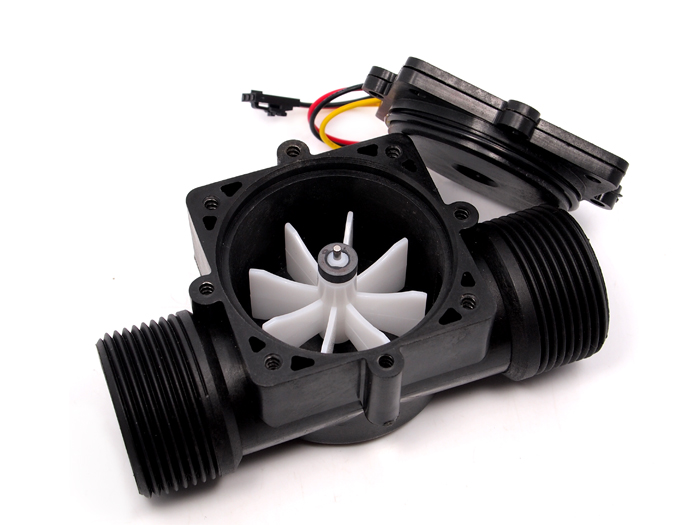

A water flow sensor is a plastic valve body with rotor that provides a hall-effect sensing when water flows through the motor. The motor will roll and the speed will change on a different rate flow. The hall-effect sensor will read the corresponding voltage pulse signal and send the signal to the micro controller and provide liquid flow rate as data.

How it works?

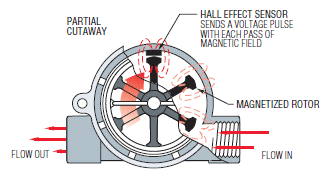

As liquid passes through the valve and the magnetic rotor spins at a rate proportional to flow, a series of magnetic field to stimulate the hall effect sensor and producing a series of voltage pulses. The output voltage pulses are the same voltage level as the input with a frequency proportional flow rate. The output signal can be digital rate totalizes or other electronic controller.

Wiring the Sensor to Arduino Board

Arduino Source Code / Sketch Using the Water Flow Sensor

/*

Demo sketch reading the water flow sensor

*/

int TORBINE;      //Measures incrementing signal
int Calc;
int HSensor = 2; //Assign to Arduino Digital Pin 2
void rpm () 	 //Function interrupt call
{
TORBINE++; //Function measures the incrementing falling edge
}
void setup()
{
pinMode(HSensor, INPUT); //initializes Arduino digital pin 2 as an input
Serial.begin(9600); //Serial communication begin to see the output data
attachInterrupt(0, rpm, RISING); //interrupt is attached
}
void loop ()
{
TORBINE = 0; //Set TORBINE to 0 for calculations

sei(); //Enables interrupts

delay (1000); //Delay wait for 1 second
cli(); //Disable interrupts
Calc = (TORBINE * 60 / 7.5); //PULSE multiply by 60 divided by 7.5Q, equal FLOW RATE in L / hour
Serial.print(Calc, DEC); //Show the number calculated above to communication port
Serial.print(" L/hour\r\n"); //Prints L / hour & returns a new line
}

Demo sketch reading the water flow sensor

int TORBINE; //Measures incrementing signal

int Calc;

int HSensor = 2; //Assign to Arduino Digital Pin 2

void rpm () //Function interrupt call

{

TORBINE++; //Function measures the incrementing falling edge

}

void setup()

{

pinMode(HSensor, INPUT); //initializes Arduino digital pin 2 as an input

Serial.begin(9600); //Serial communication begin to see the output data

attachInterrupt(0, rpm, RISING); //interrupt is attached

}

void loop ()

{

TORBINE = 0; //Set TORBINE to 0 for calculations

sei(); //Enables interrupts

delay (1000); //Delay wait for 1 second

cli(); //Disable interrupts

Calc = (TORBINE * 60 / 7.5); //PULSE multiply by 60 divided by 7.5Q, equal FLOW RATE in L / hour

Serial.print(Calc, DEC); //Show the number calculated above to communication port

Serial.print(" L/hour\r\n"); //Prints L / hour & returns a new line

}
