In this tutorial we will going to mix the Red LED Green LED and Blue LED by adjusting the brightness on each LED using Pulse with Modulation capabilities of the ATMEGA chip.
Parts Required
Arduino UNO/MEGA/NANO
1x RED LED
1x GREEN LED
1x BLUE LED
3x 220 Resistor

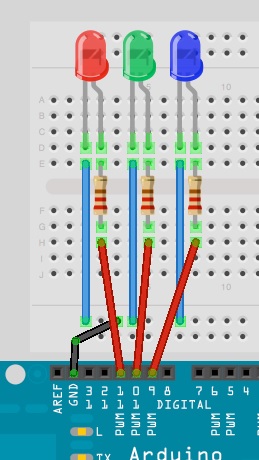

Wiring the components
The Arduino Sketch
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 |
/* 14CORE Mixing LED using pulse with modulation for 14CORE Arduino Starter Kit */ float RGB1[3]; float RGB2[3]; float INC[3]; int red, green, blue; int RedPin = 11; int GreenPin = 10; int BluePin = 9; void setup() { Serial.begin(9600); randomSeed(analogRead(0)); RGB1[0] = 0; RGB1[1] = 0; RGB1[2] = 0; RGB2[0] = random(256); RGB2[1] = random(256); RGB2[2] = random(256); } void loop() { randomSeed(analogRead(0)); for (int x=0; x<3; x++) { INC[x] = (RGB1[x] - RGB2[x]) / 256; } for (int x=0; x<256; x++) { red = int(RGB1[0]); green = int(RGB1[1]); blue = int(RGB1[2]); analogWrite (RedPin, red); analogWrite (GreenPin, green); analogWrite (BluePin, blue); delay(100); RGB1[0] -= INC[0]; RGB1[1] -= INC[1]; RGB1[2] -= INC[2]; } for (int x=0; x<3; x++) { RGB2[x] = random(556)-300; RGB2[x] = constrain(RGB2[x], 0, 255); delay(1000); } } |
Mixing Color with 3 LED using Pulse with Modulation
