14CORE Obstacle Avoidance Bot with HC-SR04, L293D Shield, SERVO & Arduino Microcontroller

This is the 14core design Obstacle Avoidance BOT with L293D Shield and HC-SR04 and Servo, which is capable of avoiding obstacles using an Ultrasonic Ranging Sensor. The HC-SR04 is economical sensor provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit. There are only four pins that you need to worry about on the HC-SR04: VCC (Power), Trig (Trigger), Echo (Receive), and GND (Ground). If you’re new to H-BRIDGE / Motor controller just follow also this link L293D / L298N.

Components Required

Arduino Microcontroller

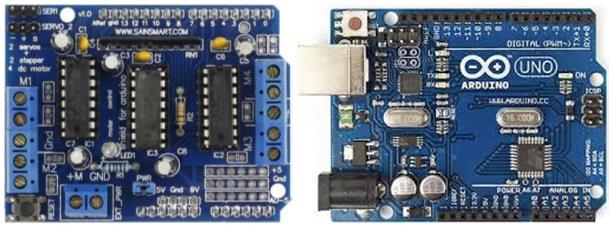

L298N / l293D UNO Shield
Smart Car Kit / Build your own Kit
HC-SR04 Ultrasonic Raging Sensor
2 or 4 Gearhead Motors
Servo
Jumper Wire / DuPont Wire (Optional)
Bread-board (Optional)

Wiring Diagram

Source Code

/*

14CORE OBSTACLE AVOINDACE ROBOT
======================TEST CODE

*/

#include <NewPing.h> //
#include <AFMotor.h> // You can download the code library below
#include <Servo.h> //

// Ultranic Pin Configuration

#define TRIG_PIN A5
#define ECHO_PIN A4

#define MAX_DISTANCE 400
#define MAX_SPEED 255
#define MAX_SPEED_OFFSET -8

#define COLL_DIST 20
#define TURN_DIST COLL_DIST+10
#define ACT_TIME 250

NewPing sonar(TRIG_PIN, ECHO_PIN, MAX_DISTANCE);

AF_DCMotor motorR(1, MOTOR12_1KHZ); // Set motor #1, 1kHz PWM
AF_DCMotor motorL(4, MOTOR12_1KHZ); // Set motor #2, 1kHz PWM

Servo myservo;  // Set servo object to control a servo
String motorSet = "";

int curDist = 0, pos, speedSet = 0;
//int pos;
//int speedSet = 0;

void setup() {

  myservo.attach(9);  // Set to attach the servo on pin 9
  myservo.write(90);  // Write 90 to face servo forward
  delay(2000);

  motorSet = "FORWARD";
  moveForward();

}

void loop() {

  checkPath();

}

void checkPath() {

  int curLeft = 0; int curRight = 0; int curFront = 0;
  curDist = 0;

  checkForward();
  myservo.write(135);
  delay(100);
  for (pos = 135; pos >= 45; pos -= 45) {
    myservo.write(pos);
    delay(170);
    curDist = readPing();

    if (curDist < COLL_DIST) { checkCourse(); break; }
    if (curDist < TURN_DIST) { changePath(); }

  }
}

int readPing() {
  int cm = 0;
  while (cm < 2) {int uS = sonar.ping(); cm = uS/US_ROUNDTRIP_CM;}
  return cm;
}

void checkForward() {
  if (motorSet=="FORWARD") { motorR.run(FORWARD); motorL.run(FORWARD); }
}
void changePath() {

  if (pos < 90) { veerLeft(); }
  if (pos > 90) { veerRight(); }

}

void veerRight() {
  motorR.run(BACKWARD);  motorL.run(FORWARD);
  delay(ACT_TIME);
  motorR.run(FORWARD);   motorL.run(FORWARD);
  motorSet = "FORWARD";
}

void veerLeft() {
  motorL.run(BACKWARD);  motorR.run(FORWARD);
  delay(ACT_TIME);
  motorL.run(FORWARD);   motorR.run(FORWARD);
  motorSet = "FORWARD";
}

void checkCourse() {
  moveBackward();
  delay(ACT_TIME);
  moveStop();
  setCourse();
}

void setCourse() {
  if (pos < 90) { turnRight(); }
  if (pos > 90) { turnLeft(); }
}

void moveBackward() {
  motorSet = "BACKWARD";

  motorR.run(BACKWARD); // Turn right motor backward
  motorL.run(BACKWARD);  // Turn left motor backward

  for (speedSet = 0; speedSet < MAX_SPEED; speedSet +=2)
  {
    motorL.setSpeed(speedSet);
    motorR.setSpeed(speedSet+MAX_SPEED_OFFSET);
    delay(5);
  }
}

void moveForward() {
  motorSet = "FORWARD";
  checkForward();
  for (speedSet = 0; speedSet < MAX_SPEED; speedSet +=2)  {
    motorL.setSpeed(speedSet);
    motorR.setSpeed(speedSet+MAX_SPEED_OFFSET);
    delay(4);
  }
}

void moveStop() { motorR.run(RELEASE); motorL.run(RELEASE); }

void turnRight() {
  motorSet = "RIGHT";
  motorR.run(FORWARD);      // Turn right motor forward
  motorL.run(BACKWARD);     // Turn left motor backward
  delay(ACT_TIME);
  motorSet = "FORWARD";
  checkForward();
}

void turnLeft() {
  motorSet = "LEFT";
  motorR.run(BACKWARD);     // Turn right motor backward
  motorL.run(FORWARD);      // Turn left motor forward
  delay(ACT_TIME);
  motorSet = "FORWARD";
  checkForward();
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

14CORE OBSTACLE AVOINDACE ROBOT

======================TEST CODE

#include <NewPing.h> //

#include <AFMotor.h> // You can download the code library below

#include <Servo.h> //

// Ultranic Pin Configuration

#define TRIG_PIN A5

#define ECHO_PIN A4

#define MAX_DISTANCE 400

#define MAX_SPEED 255

#define MAX_SPEED_OFFSET -8

#define COLL_DIST 20

#define TURN_DIST COLL_DIST+10

#define ACT_TIME 250

NewPing sonar(TRIG_PIN, ECHO_PIN, MAX_DISTANCE);

AF_DCMotor motorR(1, MOTOR12_1KHZ); // Set motor #1, 1kHz PWM

AF_DCMotor motorL(4, MOTOR12_1KHZ); // Set motor #2, 1kHz PWM

Servo myservo; // Set servo object to control a servo

String motorSet = "";

int curDist = 0, pos, speedSet = 0;

//int pos;

//int speedSet = 0;

void setup() {

myservo.attach(9); // Set to attach the servo on pin 9

myservo.write(90); // Write 90 to face servo forward

delay(2000);

motorSet = "FORWARD";

moveForward();

}

void loop() {

checkPath();

}

void checkPath() {

int curLeft = 0; int curRight = 0; int curFront = 0;

curDist = 0;

checkForward();

myservo.write(135);

delay(100);

for (pos = 135; pos >= 45; pos -= 45) {

myservo.write(pos);

delay(170);

curDist = readPing();

if (curDist < COLL_DIST) { checkCourse(); break; }

if (curDist < TURN_DIST) { changePath(); }

}

int readPing() {

int cm = 0;

while (cm < 2) {int uS = sonar.ping(); cm = uS/US_ROUNDTRIP_CM;}

return cm;

}

void checkForward() {

if (motorSet=="FORWARD") { motorR.run(FORWARD); motorL.run(FORWARD); }

}

void changePath() {

if (pos < 90) { veerLeft(); }

if (pos > 90) { veerRight(); }

}

void veerRight() {

motorR.run(BACKWARD); motorL.run(FORWARD);

delay(ACT_TIME);

motorR.run(FORWARD); motorL.run(FORWARD);

motorSet = "FORWARD";

}

void veerLeft() {

motorL.run(BACKWARD); motorR.run(FORWARD);

delay(ACT_TIME);

motorL.run(FORWARD); motorR.run(FORWARD);

motorSet = "FORWARD";

}

void checkCourse() {

moveBackward();

delay(ACT_TIME);

moveStop();

setCourse();

}

void setCourse() {

if (pos < 90) { turnRight(); }

if (pos > 90) { turnLeft(); }

}

void moveBackward() {

motorSet = "BACKWARD";

motorR.run(BACKWARD); // Turn right motor backward

motorL.run(BACKWARD); // Turn left motor backward

for (speedSet = 0; speedSet < MAX_SPEED; speedSet +=2)

{

motorL.setSpeed(speedSet);

motorR.setSpeed(speedSet+MAX_SPEED_OFFSET);

delay(5);

}

void moveForward() {

motorSet = "FORWARD";

checkForward();

for (speedSet = 0; speedSet < MAX_SPEED; speedSet +=2) {

motorL.setSpeed(speedSet);

motorR.setSpeed(speedSet+MAX_SPEED_OFFSET);

delay(4);

}

void moveStop() { motorR.run(RELEASE); motorL.run(RELEASE); }

void turnRight() {

motorSet = "RIGHT";

motorR.run(FORWARD); // Turn right motor forward

motorL.run(BACKWARD); // Turn left motor backward

delay(ACT_TIME);

motorSet = "FORWARD";

checkForward();

}

void turnLeft() {

motorSet = "LEFT";

motorR.run(BACKWARD); // Turn right motor backward

motorL.run(FORWARD); // Turn left motor forward

delay(ACT_TIME);

motorSet = "FORWARD";

checkForward();

}

Downloads

Download the AFMotor Code Library Here | Zip
Download the NewPing Code Library Here | Zip

14CORE Obstacle Avoidance Bot with HC-SR04, L293D Shield, SERVO & Arduino Microcontroller

Tagged on: 14CORE Motors Robot Robotics Sensor

3 thoughts on “14CORE Obstacle Avoidance Bot with HC-SR04, L293D Shield, SERVO & Arduino Microcontroller”

elijah
at

Where do u connect the arduino?
- 14core EditorPost author
  at

  Note: it is actually an L2983D Arduino UNO Shield. see above image :) Regards
George Weah
at

Hi, can you send me a circuit and code for same but 2 servo’s and 2 ultrasonic sensor’s? Thanks
